Uninteruptable Power Supply

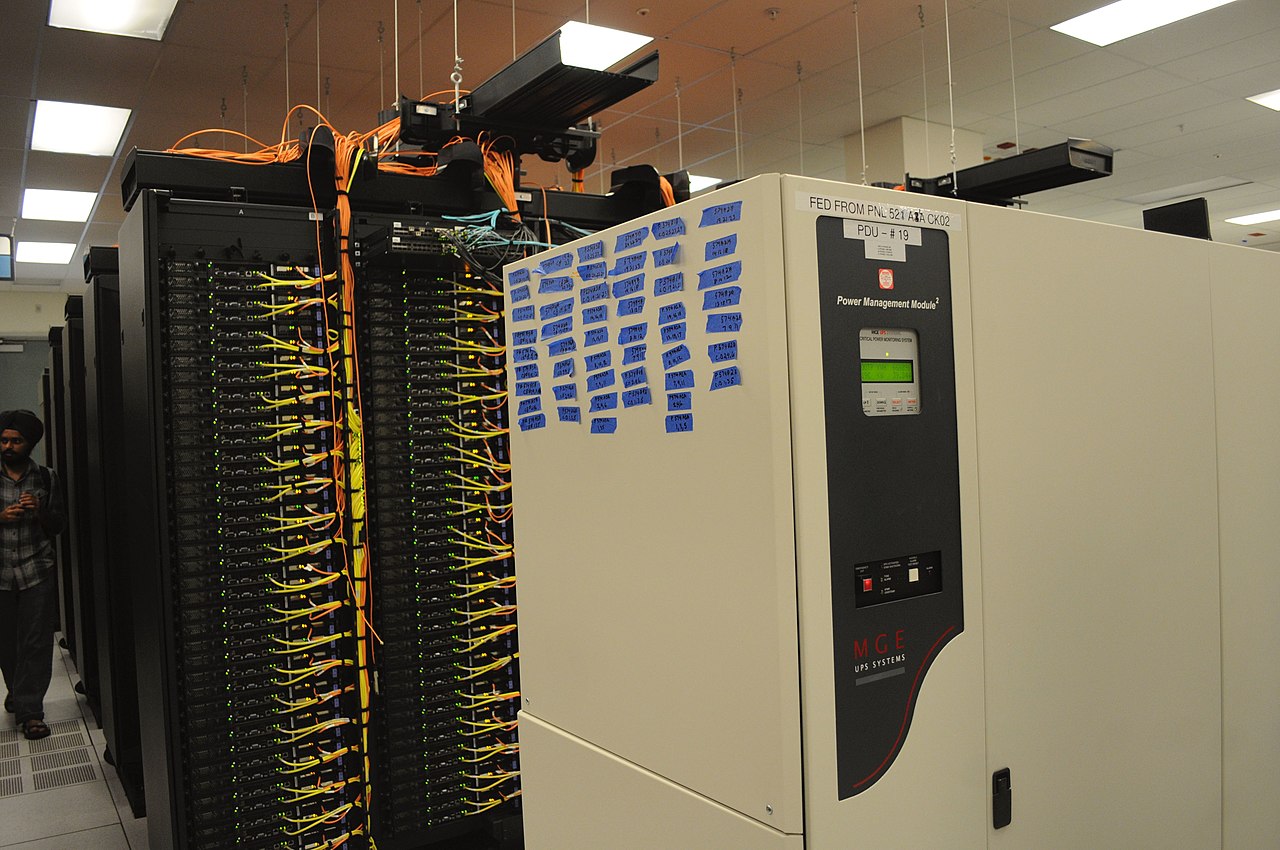

Uninterruptible Power Supply (UPS) systems play a critical role in data center power distribution by providing instant backup power in the event of a grid failure or voltage fluctuation. These systems act as a bridge between utility power loss and backup generator activation, ensuring that critical IT equipment remains powered without disruption.
How UPS Systems Work
A UPS system supplies backup power through batteries, flywheels, or capacitors to maintain consistent power flow. The typical power transition sequence includes:
Normal Operation: Utility power supplies the data center while the UPS remains in standby mode, maintaining battery charge.
Power Interruption: If utility power is lost, the UPS instantly supplies power to connected loads.
Generator Activation: After a few seconds, backup generators start and take over power distribution.
UPS Recharge: Once the generator stabilizes power, the UPS switches back to standby mode and recharges.
Types of UPS Systems
Different types of UPS configurations are used based on a data center’s redundancy and efficiency needs:
Online Double-Conversion UPS: The most reliable option, continuously converting incoming AC power to DC and back to AC for clean, stable output.
Line-Interactive UPS: Regulates voltage fluctuations and provides short-term backup, ideal for mid-tier applications.
Offline/Standby UPS: Engages only when power is lost, suitable for lower-priority loads.
Battery Technologies for UPS
The reliability of a UPS system depends on its energy storage method. Common UPS battery technologies include:
Valve-Regulated Lead-Acid (VRLA) Batteries: Widely used due to cost-effectiveness and proven reliability.
Lithium-Ion Batteries: Provide longer lifespan, higher efficiency, and faster recharging compared to VRLA.
Flywheel UPS: Uses rotational energy to store and release power, offering ultra-fast transitions with minimal maintenance.
Supercapacitors: Emerging technology for rapid power discharge and longer durability.
Commissioning Considerations for UPS Systems
Commissioning ensures that UPS systems are correctly installed, configured, and tested before data center operations begin. Critical commissioning steps include:
Battery Runtime Testing: Verifying the UPS can sustain load requirements during an outage.
Load Transfer Simulations: Ensuring seamless switching between UPS, generators, and main power.
Thermal Scanning & Performance Audits: Identifying overheating risks and inefficiencies.
Redundancy Validation: Confirming proper failover mechanisms in N+1 or 2N configurations.
Proper UPS commissioning enhances data center resilience, power stability, and equipment protection, safeguarding against unexpected outages and power disturbances.
